S100-K1

Cloud Desktop Hardware

S100-K1

  • product Features
  • Sleek and stylish design with slim plug-in keycaps.
  • 4-button mouse with adjustable DPI settings for precision control.
  • Durable build with over 10 million keystroke lifespan.
  • Ergonomic design for a comfortable typing and handling experience.
Specifications Keyboard Mouse
Dimensions 441x139x20.8mm 111.76x62x36.08mm
Weight 463±15g 106.0±5g
Material Black ABS (top and bottom case) Black ABS plastic
Cable Full black PVC cable, length 1.75 m Full black PVC cable, length 1.75 m
Scroll Wheel - PC wheel with black silicone rubber coating
Button Lifespan - Over 3 million clicks under normal operation

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

G100-E22 / E24 / E27

Cloud Desktop Hardware

G100-E22 / E24 / E27

  • product Features
  • Ultra-slim bezel display, redefining aesthetics with a modern touch.
  • Features a full HD ultra-narrow bezel screen for a more comfortable viewing experience.
  • IPS hard screen with true color reproduction delivers vivid and lifelike visuals with a 1000:1 contrast ratio.
  • Anti-glare matte finish with low flicker for eye comfort.
Screen Size 21.5", 23.8", or 27"
Aspect Ratio 16:9
Panel Type IPS
Contrast Ratio 1000：1
Maximum Resolution 1920x1080
Display Colors 16.7M
HDCP Support Supported
Signal Interfaces 1*VGA，1*HDMI
Controls & Management Menu, Decrease/Brightness, Increase/Volume, Exit/Input Source Switch, Power Button

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

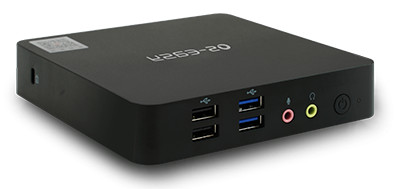

K100-A11

Cloud Desktop Hardware

K100-A11

  • product Features
  • Compact and Elegant Design
  • Slim and ultra-compact chassis with a refined and modern appearance
  • High-Performance ARM Chip for Smooth Cloud Experience
  • Equipped with a quad-core ARM processor with up to 2.0GHz clock speed for efficient cloud access
  • Gigabit Ethernet for High-Bandwidth Needs
  • Includes a Gigabit Ethernet port to support high-speed network requirements for teaching and office use
  • Green, Low-Carbon, and Silent Operation
  • Fanless design for ultra-quiet performance; power consumption under 10W ensures energy efficiency and eco-friendliness
  • Reliable Memory and Storage
  • Onboard memory and storage for enhanced stability and durability
  • Supports 4K UHD Output
  • Delivers crisp and detailed visuals with 4K high-definition display support
CPUThe RK3568 4 core (ARM Cortex-A55) maximum frequency of 2.0GHz
RAMOnboard 2GB DDR4 (expandable up to 4GB)
StorageBuilt-in 8GB eMMC (expandable up to 32GB)
Network1 × RJ45 Gigabit Ethernet port (optional: 2 × RJ45)
OSSupports Linux and Android
Power 36W ( 12V / 3A)
Wireless module Optional support for Wi-Fi 6 / Wi-Fi 5
Working Temperature0°C to 45°C (32°F to 113°F) at 0.7 m/s airflow
Relative humidityUp to 95% @ 40°C (non-condensing)

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

X100-EA24H24

Cloud Desktop Hardware

X100-EA24H24

  • product Features
  • The host and display are integrated into a single unit for a sleek, minimalist design.
  • Ultra-narrow bezel with a 178° wide viewing angle delivers an immersive visual experience.
  • Ready to use out of the box with no configuration required.
  • Ultra-silent design with power consumption under 38W, offering green and energy-efficient operation.
CPUIntel N5095
MemoryStandard 4GB/8GB DDR4 memory, expandable up to 16GB
StorageStandard 128GB/256GB M.2 SSD, expandable up to 1TB
Network1 × 1000Mbps Ethernet port
Display Size23.8”
Display Interfaces1 × HDMI, 1 × VGA
USB Ports6 × USB
Audio Interfaces 1 × MIC-IN, 1 × AUDIO-OUT
Management Supports auto power-on, cold/warm wake-up

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

Q100-E60

Cloud Desktop Hardware

Q100-E60

  • product Features
  • The ultra-slim alloy metal chassis follows a minimalist design style, with a total volume of only 1.5L—97.5% smaller than a standard desktop
  • Equipped with Intel 12th/13th generation standard-voltage processors and H45 processors, delivering powerful computing performance
  • 3,000 high-efficiency cooling vents combined with side-mounted smart copper heat pipes provide outstanding thermal dissipation performance
  • Standard configuration includes 1 Gigabit Ethernet port and 1 COM port; optional configuration supports 2 Gigabit Ethernet ports and 2 COM ports to meet diverse connectivity requirements
  • Supports dual-channel DDR4 SODIMM memory, with a dedicated access cover for easy expansion and upgrades
  • Optional support for Wi-Fi and Bluetooth via external wireless modules; extended power switch interface is available
CPUIntel® 12th/13th Gen Core™ processors (optional models: i5-12400, i7-12700, i5-13400, i7-13700, H45 series)
RAM8GB DDR4 standard, expandable up to 32GB
Storage256GB M.2 SSD standard; supports dual-drive expansion (M.2 + 2.5" SATA)
Network1 × 1000Mbps RJ45 (optional: 2 × 1000Mbps); Intel® Ethernet Controller I226-V
Display Interfaces1 × HDMI, 1 × VGA
USB Ports8 × USB total (4 × USB 3.2, 4 × USB 2.0)
Audio Interfaces 2 × MIC-IN, 2 × AUDIO-OUT
Other Interfaces 1 × COM port standard (optional: 2 × COM); supports Wi-Fi and Bluetooth
Power Supply 90W / 120W power adapter
Management Supports auto power-on, cold/warm wake-up
Mounting Includes 100×100mm VESA bracket; supports desktop placement

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

K100-E11

Cloud Desktop Hardware

K100-E11

  • product Features
  • Based on VDI desktop virtualization architecture, both computing and storage are cloud-hosted, allowing flexible and on-demand configuration adjustments
  • Comprehensive peripheral compatibility with 8 USB ports
  • One-click updates with zero maintenance; integrated hardware and software design enables easy deployment and zero hardware wear
  • Ultra-quiet teaching and office environment with green energy-saving features to effectively reduce power consumption
CPUIntel® Jasper Lake N5095 Processor (4 cores / 4 threads, base frequency 2.0 GHz, max turbo frequency 2.9 GHz, TDP 15W)
Memory4GB DDR4 standard, expandable up to 16GB
StorageStandard 128GB/256GB M.2 SSD, expandable up to 1TB 1 × M.2 slot (supports 2242 / 2280 form factors)
Network1 × 1000Mbps Ethernet port
Display Interfaces1 × HDMI, 1 × VGA
USB Ports8 × USB ports
Audio Interfaces 1 × MIC-IN, 1 × AUDIO-OUT, 1 × combo AUDIO & MIC port
Management Supports auto power-on, cold/warm wake-up
Mounting Includes 100×100mm VESA bracket; supports desktop placement

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

X100-EF35H24

Cloud Desktop Hardware

X100-EF35H24

  • product Features
  • Powered by Intel® Core™ i3/i5/i7 processors, delivering robust computing performance
  • Modular design enables easy storage expansion
  • IPS ultra-narrow bezel display for an immersive visual experience
  • Built-in gravity sensor on the motherboard enables automatic screen rotation
CPUIntel® 12th Gen Core™ i3/i5/i7 standard-voltage processors (optional models)
Memory16GB DDR4 standard, expandable up to 64GB
Storage512GB SSD standard
Network1 × 1000Mbps Ethernet port
Display Size23.8”
Display Interfaces1 × HDMI, 1 × COM
USB Ports6 × USB ports (including 1 × Type-C)
Audio Interfaces 1 × MIC-IN, 1 × AUDIO-OUT
Management Supports auto power-on, cold/warm wake-up

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

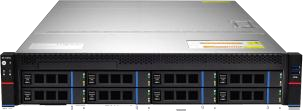

T100-H25 Series – vGPU – Intel

Cloud Desktop Hardware

T100-H25 Series - vGPU - Intel

  • product Features

Supports up to 2 × Intel® Xeon® Scalable processors, delivering robust computing performance

Equipped with up to 24 DDR4 memory slots at 2933 MHz for high memory bandwidth

Features a smart thermal management system that reduces noise pollution and ensures a stable operating environment

Next-Generation vGPU Support for 3D Graphics

Supports up to 10 PCIe expansion slots, capable of accommodating 2 full-height, full-length dual-slot GPU cards

Utilizes advanced virtualization slicing technology for flexible, on-demand sharing of GPU resources

>>>>>>
Form Factor2U rack-mount chassis (16 DIMM slots, 12 drive bays)
CPUSupports Intel® 4th/5th Generation Xeon® Scalable processors (e.g., 6444Y, 6544Y)
Memory32 DDR5 ECC DIMM slots, supports up to 5200MHz memory
Hard DiskFront: 8 × hot-swappable 3.5"/2.5" SAS/SATA drives
Rear(optional): 2 × 3.5" or 2 × 2.5" SAS/SATA drives
RAIDSupports hardware RAID 0/1/5/10 (optional RAID controller)
Expansion Slots≥ 6 full-height PCIe slots, 4 half-height PCIe slots
GPUSupports most NVIDIA and AMD GPUs, configurable according to application requirements
NetworkDefault: 4 × 1GbE (2 onboard + 2 independent)
Optional: 10GbE NIC with optical modules
Power SupplySupports 220V AC redundant power supplies
ManagementDedicated RJ45 management port with remote access capability, supporting IPMI 2.0

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

T100-H25 Series – vGPU – AMD

Cloud Desktop Hardware

T100-H25 Series - vGPU - AMD

  • product Features

Supports up to 2 × AMD EPYC™ 7003/7002/7001 series processors

Ideal for virtualization, cloud computing, big data processing, distributed storage, enterprise IT, and telecom applications

Modular design with flexible configurations for PCIe and storage options

Next-Generation vGPU Ready: Fully supports 3D graphics workloads

Up to 10 PCIe expansion slots, capable of hosting 2 dual-width, full-height, full-length GPU cards

Advanced GPU virtualization slicing technology enables flexible and dynamic GPU resource sharing based on demand

>>>>>>
Form Factor2U rack-mount chassis (32 DIMM slots, 12 drive bays)
CPUSupports up to 2 × AMD EPYC™ 7003/7002/7001 series processors
Memory32 DDR4 ECC DIMM slots, supports 2666/2933 MHz memory
Hard DiskFront: 8 × hot-swappable 3.5"/2.5" SAS/SATA drives
Rear(optional): 2 × 3.5" or 2 × 2.5" SAS/SATA drives
RAIDSupports hardware RAID 0/1/5/10 (optional RAID controller)
Expansion SlotsSupports up to 10 PCIe expansion slots
GPUSupports most NVIDIA and AMD GPUs, configurable according to application requirements
NetworkDefault: 4 × 1GbE (2 onboard + 2 independent)
Optional: 10GbE NIC with optical modules
Power SupplySupports 220V AC redundant power supplies
ManagementDedicated RJ45 management port with remote access capability, supporting IPMI 2.0

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

T100-H25 Series – AMD

Cloud Desktop Hardware

T100-H25 Series - AMD

  • product Features

2U dual-socket standard rackmount server

Supports up to 2 × AMD EPYC™ 7003/7002/7001 series processors

Modular design with flexible PCIe and storage configuration options

Ideal for virtualization, cloud computing, big data processing, distributed storage, enterprise IT, and telecom applications

>>>>>>
Form Factor2U rack-mount chassis (32 DIMM slots, 12 drive bays)
CPUSupports up to 2 × AMD EPYC™ 7003/7002/7001 series processors
Memory32 DDR4 ECC DIMM slots, supports 2666/2933 MHz memory
Hard DiskFront: 8 × hot-swappable 3.5"/2.5" SAS/SATA drives
Rear (optional): 2 × 3.5" or 2 × 2.5" SAS/SATA drives
RAIDSupports hardware RAID 0/1/5/10 (optional RAID controller)
Expansion SlotsSupports up to 10 PCIe expansion slots
GPUIntegrated display chip
NetworkDefault: 4 × 1GbE (2 onboard + 2 independent)
Optional: 10GbE NIC with optical modules
Power SupplySupports 220V AC redundant power supplies
ManagementDedicated RJ45 management port with remote access capability, supporting IPMI 2.0

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details
