K100-A11

Cloud Desktop Hardware

K100-A11

  • product Features
  • Compact and Elegant Design
  • Slim and ultra-compact chassis with a refined and modern appearance
  • High-Performance ARM Chip for Smooth Cloud Experience
  • Equipped with a quad-core ARM processor with up to 2.0GHz clock speed for efficient cloud access
  • Gigabit Ethernet for High-Bandwidth Needs
  • Includes a Gigabit Ethernet port to support high-speed network requirements for teaching and office use
  • Green, Low-Carbon, and Silent Operation
  • Fanless design for ultra-quiet performance; power consumption under 10W ensures energy efficiency and eco-friendliness
  • Reliable Memory and Storage
  • Onboard memory and storage for enhanced stability and durability
  • Supports 4K UHD Output
  • Delivers crisp and detailed visuals with 4K high-definition display support
CPUThe RK3568 4 core (ARM Cortex-A55) maximum frequency of 2.0GHz
RAMOnboard 2GB DDR4 (expandable up to 4GB)
StorageBuilt-in 8GB eMMC (expandable up to 32GB)
Network1 × RJ45 Gigabit Ethernet port (optional: 2 × RJ45)
OSSupports Linux and Android
Power 36W ( 12V / 3A)
Wireless module Optional support for Wi-Fi 6 / Wi-Fi 5
Working Temperature0°C to 45°C (32°F to 113°F) at 0.7 m/s airflow
Relative humidityUp to 95% @ 40°C (non-condensing)

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

X100-EA24H24

Cloud Desktop Hardware

X100-EA24H24

  • product Features
  • The host and display are integrated into a single unit for a sleek, minimalist design.
  • Ultra-narrow bezel with a 178° wide viewing angle delivers an immersive visual experience.
  • Ready to use out of the box with no configuration required.
  • Ultra-silent design with power consumption under 38W, offering green and energy-efficient operation.
CPUIntel N5095
MemoryStandard 4GB/8GB DDR4 memory, expandable up to 16GB
StorageStandard 128GB/256GB M.2 SSD, expandable up to 1TB
Network1 × 1000Mbps Ethernet port
Display Size23.8”
Display Interfaces1 × HDMI, 1 × VGA
USB Ports6 × USB
Audio Interfaces 1 × MIC-IN, 1 × AUDIO-OUT
Management Supports auto power-on, cold/warm wake-up

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

Q100-E60

Cloud Desktop Hardware

Q100-E60

  • product Features
  • The ultra-slim alloy metal chassis follows a minimalist design style, with a total volume of only 1.5L—97.5% smaller than a standard desktop
  • Equipped with Intel 12th/13th generation standard-voltage processors and H45 processors, delivering powerful computing performance
  • 3,000 high-efficiency cooling vents combined with side-mounted smart copper heat pipes provide outstanding thermal dissipation performance
  • Standard configuration includes 1 Gigabit Ethernet port and 1 COM port; optional configuration supports 2 Gigabit Ethernet ports and 2 COM ports to meet diverse connectivity requirements
  • Supports dual-channel DDR4 SODIMM memory, with a dedicated access cover for easy expansion and upgrades
  • Optional support for Wi-Fi and Bluetooth via external wireless modules; extended power switch interface is available
CPUIntel® 12th/13th Gen Core™ processors (optional models: i5-12400, i7-12700, i5-13400, i7-13700, H45 series)
RAM8GB DDR4 standard, expandable up to 32GB
Storage256GB M.2 SSD standard; supports dual-drive expansion (M.2 + 2.5" SATA)
Network1 × 1000Mbps RJ45 (optional: 2 × 1000Mbps); Intel® Ethernet Controller I226-V
Display Interfaces1 × HDMI, 1 × VGA
USB Ports8 × USB total (4 × USB 3.2, 4 × USB 2.0)
Audio Interfaces 2 × MIC-IN, 2 × AUDIO-OUT
Other Interfaces 1 × COM port standard (optional: 2 × COM); supports Wi-Fi and Bluetooth
Power Supply 90W / 120W power adapter
Management Supports auto power-on, cold/warm wake-up
Mounting Includes 100×100mm VESA bracket; supports desktop placement

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

K100-E11

Cloud Desktop Hardware

K100-E11

  • product Features
  • Based on VDI desktop virtualization architecture, both computing and storage are cloud-hosted, allowing flexible and on-demand configuration adjustments
  • Comprehensive peripheral compatibility with 8 USB ports
  • One-click updates with zero maintenance; integrated hardware and software design enables easy deployment and zero hardware wear
  • Ultra-quiet teaching and office environment with green energy-saving features to effectively reduce power consumption
CPUIntel® Jasper Lake N5095 Processor (4 cores / 4 threads, base frequency 2.0 GHz, max turbo frequency 2.9 GHz, TDP 15W)
Memory4GB DDR4 standard, expandable up to 16GB
StorageStandard 128GB/256GB M.2 SSD, expandable up to 1TB 1 × M.2 slot (supports 2242 / 2280 form factors)
Network1 × 1000Mbps Ethernet port
Display Interfaces1 × HDMI, 1 × VGA
USB Ports8 × USB ports
Audio Interfaces 1 × MIC-IN, 1 × AUDIO-OUT, 1 × combo AUDIO & MIC port
Management Supports auto power-on, cold/warm wake-up
Mounting Includes 100×100mm VESA bracket; supports desktop placement

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

X100-EF35H24

Cloud Desktop Hardware

X100-EF35H24

  • product Features
  • Powered by Intel® Core™ i3/i5/i7 processors, delivering robust computing performance
  • Modular design enables easy storage expansion
  • IPS ultra-narrow bezel display for an immersive visual experience
  • Built-in gravity sensor on the motherboard enables automatic screen rotation
CPUIntel® 12th Gen Core™ i3/i5/i7 standard-voltage processors (optional models)
Memory16GB DDR4 standard, expandable up to 64GB
Storage512GB SSD standard
Network1 × 1000Mbps Ethernet port
Display Size23.8”
Display Interfaces1 × HDMI, 1 × COM
USB Ports6 × USB ports (including 1 × Type-C)
Audio Interfaces 1 × MIC-IN, 1 × AUDIO-OUT
Management Supports auto power-on, cold/warm wake-up

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

T100-H25 Series – vGPU – Intel

Cloud Desktop Hardware

T100-H25 Series - vGPU - Intel

  • product Features

Supports up to 2 × Intel® Xeon® Scalable processors, delivering robust computing performance

Equipped with up to 24 DDR4 memory slots at 2933 MHz for high memory bandwidth

Features a smart thermal management system that reduces noise pollution and ensures a stable operating environment

Next-Generation vGPU Support for 3D Graphics

Supports up to 10 PCIe expansion slots, capable of accommodating 2 full-height, full-length dual-slot GPU cards

Utilizes advanced virtualization slicing technology for flexible, on-demand sharing of GPU resources

>>>>>>
Form Factor2U rack-mount chassis (16 DIMM slots, 12 drive bays)
CPUSupports Intel® 4th/5th Generation Xeon® Scalable processors (e.g., 6444Y, 6544Y)
Memory32 DDR5 ECC DIMM slots, supports up to 5200MHz memory
Hard DiskFront: 8 × hot-swappable 3.5"/2.5" SAS/SATA drives
Rear(optional): 2 × 3.5" or 2 × 2.5" SAS/SATA drives
RAIDSupports hardware RAID 0/1/5/10 (optional RAID controller)
Expansion Slots≥ 6 full-height PCIe slots, 4 half-height PCIe slots
GPUSupports most NVIDIA and AMD GPUs, configurable according to application requirements
NetworkDefault: 4 × 1GbE (2 onboard + 2 independent)
Optional: 10GbE NIC with optical modules
Power SupplySupports 220V AC redundant power supplies
ManagementDedicated RJ45 management port with remote access capability, supporting IPMI 2.0

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

T100-H25 Series – vGPU – AMD

Cloud Desktop Hardware

T100-H25 Series - vGPU - AMD

  • product Features

Supports up to 2 × AMD EPYC™ 7003/7002/7001 series processors

Ideal for virtualization, cloud computing, big data processing, distributed storage, enterprise IT, and telecom applications

Modular design with flexible configurations for PCIe and storage options

Next-Generation vGPU Ready: Fully supports 3D graphics workloads

Up to 10 PCIe expansion slots, capable of hosting 2 dual-width, full-height, full-length GPU cards

Advanced GPU virtualization slicing technology enables flexible and dynamic GPU resource sharing based on demand

>>>>>>
Form Factor2U rack-mount chassis (32 DIMM slots, 12 drive bays)
CPUSupports up to 2 × AMD EPYC™ 7003/7002/7001 series processors
Memory32 DDR4 ECC DIMM slots, supports 2666/2933 MHz memory
Hard DiskFront: 8 × hot-swappable 3.5"/2.5" SAS/SATA drives
Rear(optional): 2 × 3.5" or 2 × 2.5" SAS/SATA drives
RAIDSupports hardware RAID 0/1/5/10 (optional RAID controller)
Expansion SlotsSupports up to 10 PCIe expansion slots
GPUSupports most NVIDIA and AMD GPUs, configurable according to application requirements
NetworkDefault: 4 × 1GbE (2 onboard + 2 independent)
Optional: 10GbE NIC with optical modules
Power SupplySupports 220V AC redundant power supplies
ManagementDedicated RJ45 management port with remote access capability, supporting IPMI 2.0

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

T100-H25 Series – AMD

Cloud Desktop Hardware

T100-H25 Series - AMD

  • product Features

2U dual-socket standard rackmount server

Supports up to 2 × AMD EPYC™ 7003/7002/7001 series processors

Modular design with flexible PCIe and storage configuration options

Ideal for virtualization, cloud computing, big data processing, distributed storage, enterprise IT, and telecom applications

>>>>>>
Form Factor2U rack-mount chassis (32 DIMM slots, 12 drive bays)
CPUSupports up to 2 × AMD EPYC™ 7003/7002/7001 series processors
Memory32 DDR4 ECC DIMM slots, supports 2666/2933 MHz memory
Hard DiskFront: 8 × hot-swappable 3.5"/2.5" SAS/SATA drives
Rear (optional): 2 × 3.5" or 2 × 2.5" SAS/SATA drives
RAIDSupports hardware RAID 0/1/5/10 (optional RAID controller)
Expansion SlotsSupports up to 10 PCIe expansion slots
GPUIntegrated display chip
NetworkDefault: 4 × 1GbE (2 onboard + 2 independent)
Optional: 10GbE NIC with optical modules
Power SupplySupports 220V AC redundant power supplies
ManagementDedicated RJ45 management port with remote access capability, supporting IPMI 2.0

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

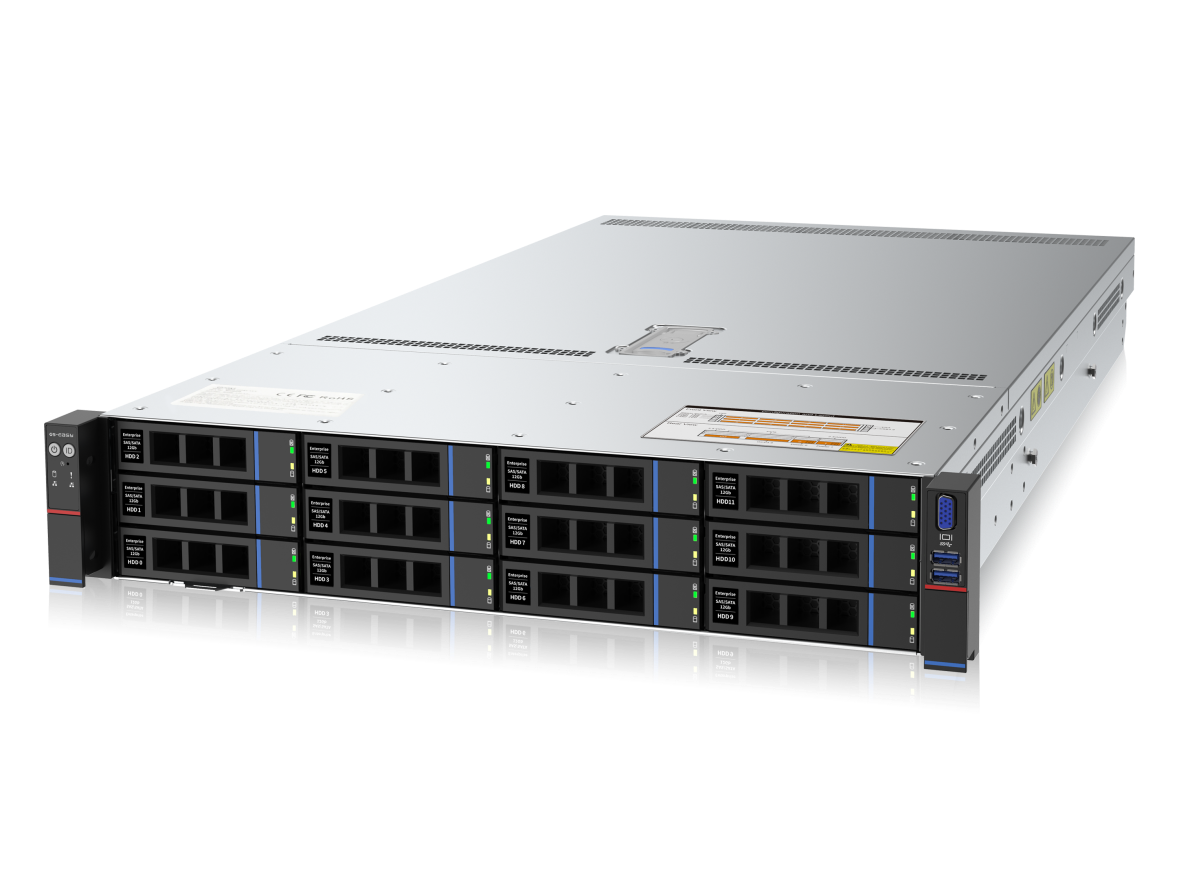

OIP232-1170 Series – Intel

Cloud Desktop Hardware

OIP232-1170 Series - Intel

  • product Features

High Performance, Enhanced Computing and Transmission

Supports up to two Intel® Xeon® Scalable processors, delivering powerful computing capabilities

Fully compatible with U.2 NVMe drives for faster data transmission

Integrates VDI, VOI, and IDV desktop cloud architectures to meet diverse application needs across all desktop cloud scenarios

Equipped with PDCM (Power Data Center Manager) for intelligent and automated server power management

Supports dynamic frequency scaling to reduce power usage during low workloads

Low Power Consumption, Energy Efficiency

Deep Integration, Full Scenario Coverage

High Memory Bandwidth Design

>>>>>>
Form Factor2U rack-mount chassis (24 DIMM slots, 12 drive bays)
CPUSupports Intel® 2nd Generation Xeon® Scalable processors (e.g., 4210R, 4214R, 6226R)
Memory24 DDR4 ECC DIMM slots, supports 2666/2933 MHz memory
Hard DiskFront: Up to 12 hot-swappable 3.5"/2.5" SATA/SAS/SSD drives
Rear: 2 hot-swappable 2.5" U.2 NVMe SSDs
RAIDSupports hardware RAID 0/1/5/10 (optional RAID card)
Expansion Slots4 × PCIe 3.0 x16 (half-height)
2 × PCIe 3.0 x8 (half-height)
GPUIntegrated display chip
NetworkDefault: 4 × 1GbE (2 onboard + 2 independent)
Optional: 10GbE NIC with optical modules
Power SupplySupports 220V AC redundant power supplies
ManagementDedicated RJ45 management port with remote access capability, supporting IPMI 2.0

Note: Specifications shown are typical configurations. Please refer to the datasheet for full technical details

1

Integrated Desktop Cloud Solution for Examination Scenarios

Solution Overview

Designed to meet the needs of various national-level examinations, certification tests, mid-term and final assessments, and online grading for college entrance exams, the Integrated Desktop Cloud Solution for Examination Scenarios enables fast, large-scale deployment of customized exam system environments.

The platform allows seamless switching between exam-specific desktops and daily teaching or training environments—without the need to re-upload or duplicate system images—streamlining both teaching workflows and exam management processes.

Solution Architecture Diagram

Solution Details

  • Centralized remote Management

Designed for IT administrators, the platform features a B/S (Browser/Server) architecture with a graphical user interface accessible from any network-connected device. It enables unified management of VDI, VOI, and IDV desktop architectures, along with centralized control over physical servers, virtual machines, terminal devices, and storage systems.

  • Pre-Deployment of Exam Environments

The platform supports pre-deployment of exam-specific environments (e.g., Windows 10, Windows 7) based on different exam requirements. Once an exam template is created, virtual machines with identical configurations can be cloned in batches and delivered quickly over the network. Multiple exam environments can be deployed simultaneously and hidden until needed, protecting system integrity in advance.

  • High Compatibility with Exam Requirements

The platform allows batch generation or modification of VM parameters such as IP address, login username, and computer name to meet custom deployment requirements. It also supports on-demand configuration of desktop restore policies.

Additionally, a built-in screen watermark function is available for Windows environments, displaying details like computer name, terminal ID, desktop IP, and restore mode—making it easy for administrators to identify and maintain exam terminals.

  • Fast Delivery and Recovery

Pre-deployed exam environments can be instantly delivered when needed using the platform’s one-click delivery feature. Students can log in and use the environment immediately. After the exam, the system can quickly reclaim and hide the desktops, preserving the original environment while freeing up system resources. There is no need to re-upload or replicate system images, and the system can seamlessly switch back to daily teaching desktops.

  • Exam Environment Reliability and Safety

To avoid disruptions during examinations, the platform supports both master node HA and desktop-level HA. In case of server failure, virtual desktops are automatically migrated to other available servers without downtime.

If a terminal is unexpectedly powered off, data is retained upon reboot. In extreme scenarios, the platform supports dual-system fallback: even if virtualization fails, the system can switch to a local OS on the terminal, ensuring exams continue using local resources.

  • Daily Teaching Support

When exams are not scheduled, the system can instantly switch back to daily training and teaching desktops. Virtual desktops with different OS environments—including Windows 7, Windows 10, Linux, and China’s Kylin OS—can be delivered based on course schedules. Each OS is isolated, with software installed on-demand, and desktops can auto-start based on the timetable.

  • Student Behavior Control and Monitoring

The platform provides comprehensive behavior monitoring tools for both exams and classes. Features include:

Network access policies (e.g., block external or full network, allow list exceptions)

Application control and peripheral restrictions (USB, mobile storage, mobile device access)

Remote operations such as rebooting, waking, or shutting down terminals and desktops

These functions help ensure a safe and orderly digital teaching and testing environment.

  • Compatibility and Scalability

The platform supports a wide range of systems, including Windows XP/7/10/Server 2012, Ubuntu, Red Hat, and domestic OS such as NeoKylin. It is compatible with various terminal architectures and form factors:

  • x86/ARM-based thin clients
  • All-in-one terminals
  • VOI thick clients
  • Legacy PCs and repurposed devices

It also supports a variety of exam systems, including National Computer Proficiency Exams, ATA Exams etc.

Solution Value

  • Flexible Switching Between Exams and Daily Training

A unified cloud platform supports seamless switching across all application scenarios—including daily teaching, practical training, assessments, office work, standardized exams, ATA exams, medical and judicial exams, competitions, and online grading for college entrance exams—ensuring a consistent and efficient experience for both teachers and students.

  • Simplifies IT O&M efficiency by up to 90%

A single cloud platform enables unified construction of economics and management computer labs. Through one centralized web-based management interface, desktops across all disciplines—such as International Economics and Trade, Business Administration, E-commerce, Financial Management, Logistics, and Finance—can be deployed, upgraded, and maintained at scale, covering thousands of desktops.

  • Higher Resource Utilization, Future-Proof Scalability

Built on a cloud resource service model with high efficiency and scalability, the solution can support over 10,000 terminals and 100,000 desktops—meeting the demands of the next 5–10 years of IT development and educational expansion.
